Willow harvest at the Orchard

We harvested last year's growth of willow from the grove planted in the Turnditch Orchard. We planted the willow (100 wands) in 2013 shortly after purchasing the land to form the orchard. This year was the first time we've taken a crop.

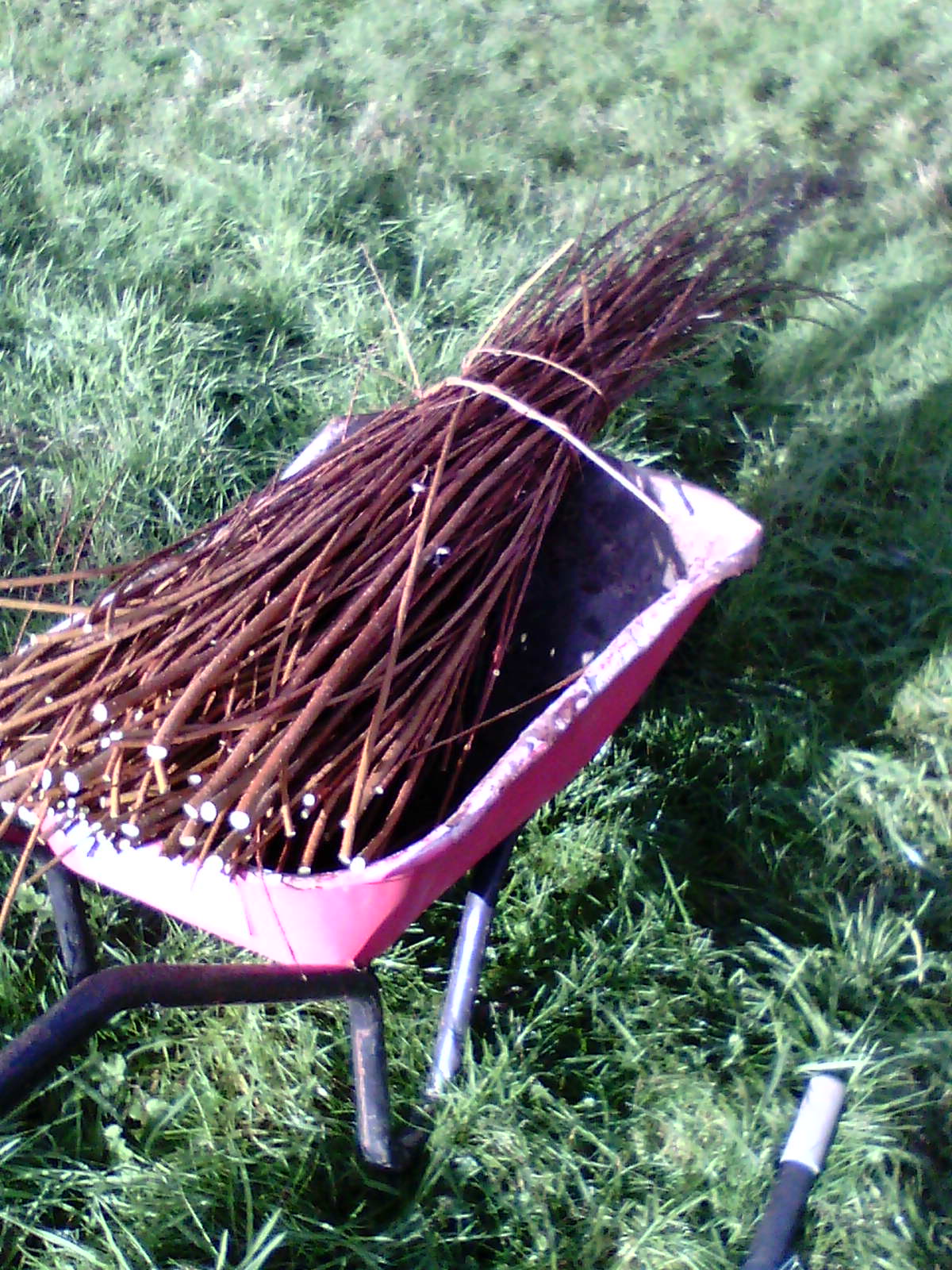

We were able to take about a wheelbarrow load of willow branches or wands from the plants. We've coppiced them to waist height to encourage the development of a trunk with thicker tough bark and provide future resilience from rabbit or sheep attack.

The field is quite soggy at the moment following all the rain we have had recently, The base of the willow was under water in a large puddle. Fortunately willow is able to resist such wet conditions without damage. Over the past few weeks the river has come close to the flood levels on several occasions, but fortunately the rain lessened and we were not flooded.

We were able to use the willow (Salix Verminalis) to start work on spiling the river bank. We were able to create a trial three metre section. We'll monitor progress during the year. If it regrows well we will repeat the process next winter.

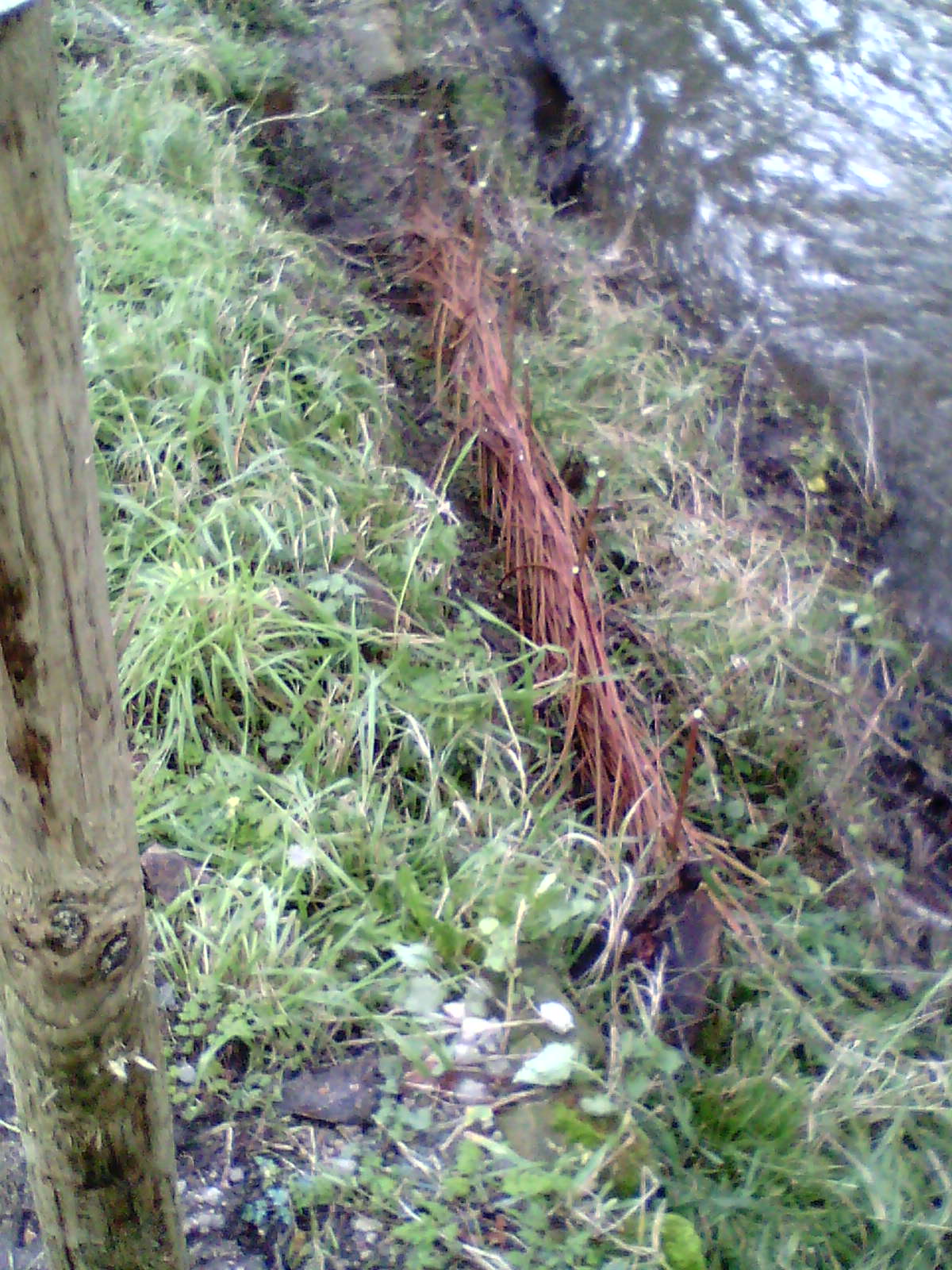

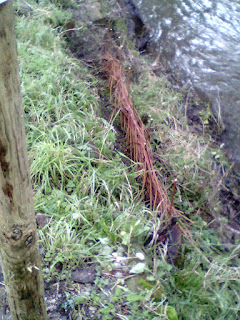

The willow spiling is formed by pushing the thicker sticks into the ground (after using an iron bar to make a hole) in an upright position. The remaining thinner willow sticks (whips) are woven horizontally between the uprights to form a low wall. We also planted the butt end of most of the sticks in the soil. Most of the willow will take root and grow during the spring/summer forming a living green wall. The willow roots will penetrate down into the river bank in search of nutrients and water. The mass of willow roots will reinforce the river bank and protect against further erosion. The wall will collect sediment behind it during flooding and is not damaged by inundation. As the willow becomes established we'll have to periodically trim it back to stop it growing too tall.

River Bank Fencing

We've started installing fence posts along the river bank at the Turnditch Orchard. We'll be setting up a wire stock-fence using those posts. This is all part of the plan to make the orchard site safer for local children and dogs. Normally the river is quite shallow with a gentle flow, but after a storm or in winter when the river is in spate it is an entirely different beast. It would be a dangerous place to enter under those conditions.

We've been clearing the river bank of uncontrolled shrubs and trees so that we can plant some willow spiling to help reinforce the banks against erosion. We've also removed some elm trees which appear to be infected with Dutch Elm Disease. All of this work has significantly exposed access to the river, so we need a fence to improve safety and prevent visitors and users of the public footpath from accidentally straying into the river Ecclesbourne. We also need to stop dogs entering the river from the footpath and going upstream under the road bridge to fields where sheep are grazing.

We were able to drive most of the fence posts into the ground. A 20 Kg post driving tool helped to ease the task, though the repeated lifting and dropping of the tool onto the posts was quite hard work. The following day we certainly discovered muscles we'd forgotten. However as we approached the roadside near the bridge it became progressively more difficult to drive the fence posts into the ground. We started hitting rock buried in the ground. So we have one fence post as yet not installed. We'll need to use a pickaxe to dig a hole and then use concrete to securely embed the fence post.

After the work I was talking to one of the local residents. I was very interested to discover that some years ago part of the river bank next to the bridge had collapsed into the river and had to be rebuilt by the roads authority. It certainly explains why we found so many rocks in the ground at that location.

Edit: in a later Blog posting you can see this single remaining fence post generated a lot of extra work.

Investigating the river

We spent Sunday morning at the orchard site. I'd been intending for some time to get my wellington boots on and go along the river during the low summer water levels. As long as I avoided the obvious deeper areas I was okay and didn't get boots full of water. The banks are about 2.5 metres above the riverbed and quite steep, I pre-fixed a knotted rope to a tree so I'd be able to climb out again.

One side of the orchard is a road embankment which leads to a railway bridge from the river. The road was built across the floodplain when the railway was first built, so quite a substantial amount of landfill was used to create the "hill" leading to the bridge. The bottom section of our field which forms the river bank has also had some build up of fill to allow access to the  road. It looks like the fill material was quarry chippings. Over the past 150 years this has been overgrown and no longer looks artificial. However when the river runs in full spate in the winter rains it fills almost to the top of our river banks. The river is a very different beast from the gentle brook of the summer months. The flooding causes erosion of the material dumped to form the ramp up to the road.

Wash-out of the river bank

The washed out materiel is then dumped on the river bed. You can see the results of this in the above picture. The rubble is limestone chippings and appears to have built up above the normal level of the river bed. The picture below shows the roots of elm trees which have been exposed by the erosion of the bank during periods of river spate/flood.

Eroded tree roots on the river bank

We'll be removing these compromised trees in the autumn and as mentioned in an earlier blog replacing them with  live willow spiling to control the erosion of the river bank. During this inspection process I was assisted by two young apprentices. They  seemed to be intent on making much splashing in the river.

Apprentice river bank surveyors

We also managed some weed clearance, particularly the Himalayan Balsam  which is an unwanted invasive species. This is going to be an on-going battle because the weed is is rampant upstream and down stream of our site. We can at least prevent the seeds being formed on our land. There are some legal responsibilities in dealing with this weed.

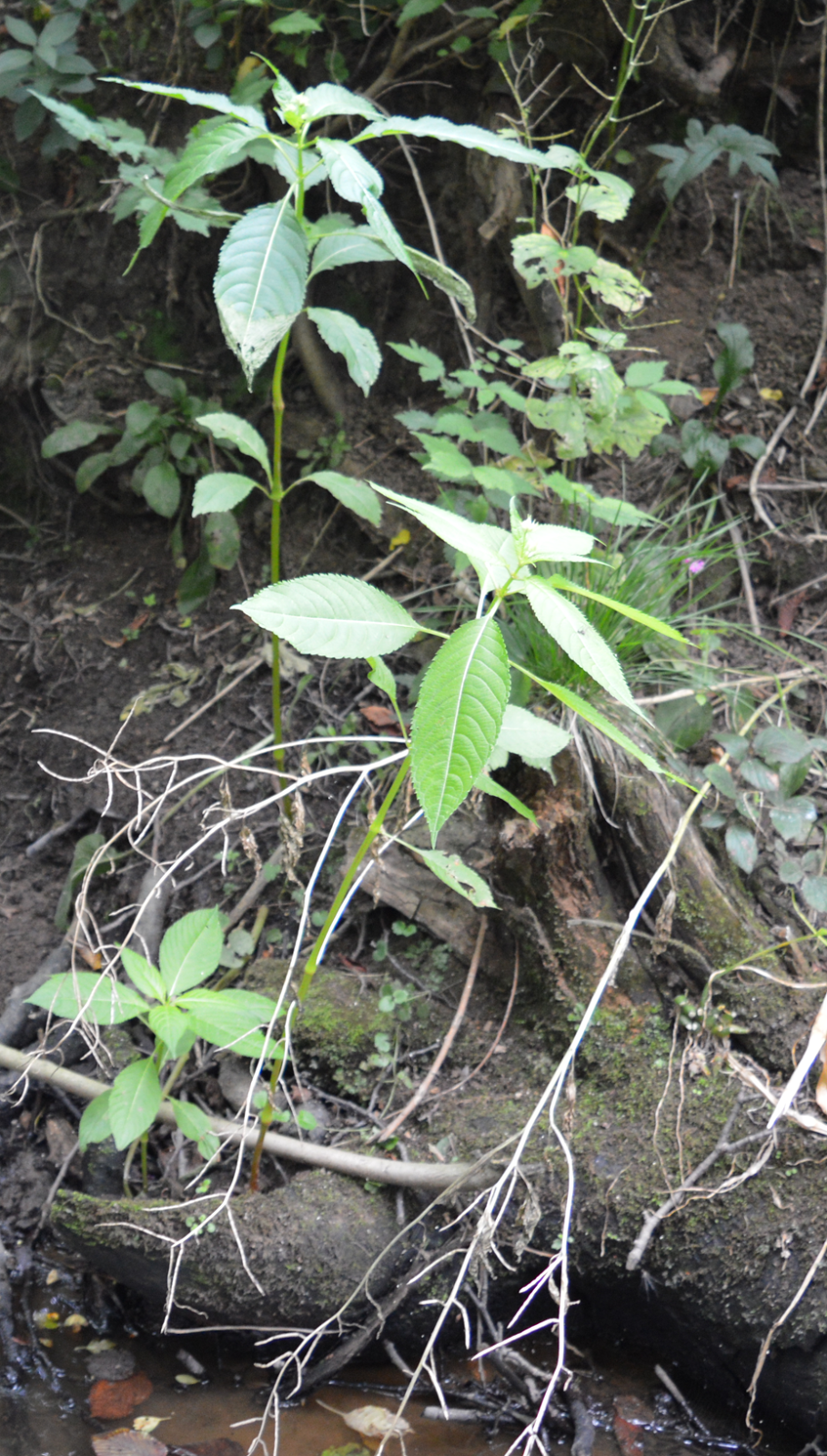

Himalayan Balsam on the river bank

Preparing the security unit and river erosion

We were able to get on the orchard site today. We started to lay the base of the temporary security box. This unit will store materials and dangerous tools while we work on the site to clear the field, plant the orchard, install drainage and manage the woodland.

The metal base frame is filled with steel fibre reinforced concrete mounted on a sheet of vapour barrier plastic. This plastic sheet will protect the soil from the concrete for when we come to remove the temporary store unit. Water for the concrete comes from the Ecclesbourne River.

A toughened steel security chain is embedded in the very heavy concrete base and attached to ground anchors. The chain will be used to secure tools when they are not in use. Other hidden security measures may be in operation. ;-)

The petrol motor brush cutter we're using to clear the field is quite long at 2 metres. We had to chose a large security box to provide space for the brush cutter. The long-handled Stafford Billhook we'll be using for hedge laying is now literally razor sharp. At times we'll be using other power tools. The intent is to be able to safely lock away tools such as these and also angle-grinders and chain saws during the day when we are working at the other end of the field or in the woodland. Better safe than sorry, but if kids were to mess around with those forestry tools they could be become injured. It's unlikely, but the site is very close to the road with a public footpath running next to the river.

Nothing valuable will be stored overnight. We'll even release trespassers from the chains before we pack up for the night.

Update 31/10/13  I've discovered I have muscles involved on concrete mixing (by hand/shovel) which I've not used in a long time.

We also noticed some exposed flower bulbs, snowdrop, on the river bank. There's probably been some soil erosion during recent years. We may need to consider some method of natural reinforcing to prevent the erosion extending. If we leave this the erosion will eat into the public footpath and endanger the farm access to adjoining fields.

Exposed flower bulbs (Snowdrop) on the bank of the Ecclesbourne

There's some useful information here. Obviously concrete is out of the question and geotextile or wire gabions always looks quite tatty after a couple of years. Tied brushwood bundles (fasces) and/or introducing some live Willow Spiling to replace the undercut elm and ash may be a suitable method of approach. Here's other willow supplier and locally. This requires soon winter work (to allow the live stakes time to take root for the summer), but as we have other more urgent work on the Orchard site the bank reinforcing will have to wait until the 2014 winter.

I suspect some of the erosion is caused by eddies from the road bridge piles when the river is in spate. Note to self: find a source of live native willow stakes

Update 3/11/2013: We've discovered any river bank erosion control scheme needs Flood Defence Consent Approval from the Environment Agency. This will definitely delay the Spiling works until next year. It also implies a £50 fee payment for us doing work to "improve" the river bank and the same forms as if we were constructing flood defences for Derby, ho-hum!. We've contacted the Environment Agency and we'll keep you posted on progress. We'll see if there's bureaucratic overload for the planting  a dozen live willow stakes in the bank and weaving twigs between them.

Update 6/11/2013: The environment Agency Help Desk gave us the wrong information. It looks like Derbyshire County Council look after this. Their documentation is here. Their guidance suggests we need no special permission, but we are in contact to with DCC to confirm.

Update 10.06/2015 We read in the Derby Telegraph newspaper today that volunteers for the Derbyshire Wildlife Trust that they've being undertaking some spiling on the Ecclesbourne river to protect the banks from erosion. Great minds think alike eh?! Here's DWT's report on their work.
